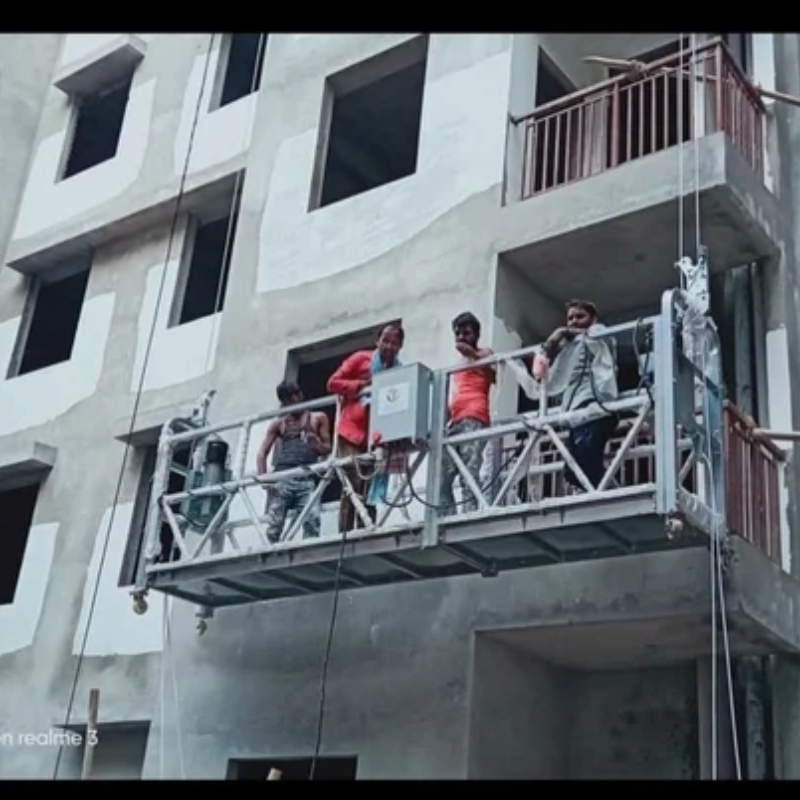

Gondola Platform in Manipur
Technical Intelligence
Usage/Application
Gondola Platform
Suspended platform weight
538 Kg (Steel) 424 Kg (Aluminum)
Ascend speed
9- 10 m/min
Hoist Model
LTD 80
Hoist Related Lifting Force
8 KN
Rated Load
800Kgs
Minimum Breaking force
65.5 KN
Suspension mechanism Height adjustment
1.15 m 1.75m
Whole Machine Weight
1928 Kg (Steel) 1814 Kg (Aluminum)
Country of Origin
Made in India
Technical Variants
| Usage/Application | Working Platform |
| Balance Weight | 1000 Kg |
| Rated Load | 800Kgs |
| Ascend speed | 9- 10 m/min |
| Hoist Model | LTD 80 |
| Hoist Related Lifting Force | 8 KN |
| Electric Motor Voltage | AC 380V, 3-Phases (AC415V, 3-Phases ) |
| Suspension mechanism Height adjustment | 1.15 m 1.75m |
| Whole Machine Weight | 1928 Kg (Steel) 1814 Kg (Aluminum) |
| Country of Origin | Made in India |
| Model | ZLP 800 |
| Rated Load Capacity | 800 Kgs |
| Platform Length | 7.5 Mtrs (2.5 + 2.5 + 1.5 + 1 Mtr) |
| Platform Width | 2 Feet |
| Wheels | 4 Bottom Wheels + 2 Wall Support Wheels |
| Material | Hot Dip Galvanised / Powder Coated |
| Height Adjustment | 3.75 Ft to 5.75 Ft (Adjustable 100 mm) |
| Hoist Model | ZLP 800 with Electromagnetic Brake Motor (Alpha Type) |
| Hoist Power | 2.5 HP, 415V, 50 Hz |
| Hoist Quantity | 2 Nos |
| Safety Lock Type | Anti-Tilting, 30 KN |
| Safety Lock Quantity | 2 Nos |
| Control Panel Quantity | 1 No |
| Electric Cable | 2.5 mm x 5 Core, 100 Mtrs |
| Steel Wire Rope | 9.1 mm, 100 Mtrs |
| Steel Wire Rope Quantity | 4 Nos (2 Working + 2 Safety) |
