Rebar Processing Machine in Manipur
Technical Intelligence
Usage/Application
Rebar Processing Machine
Automation Grade
Semi-Automatic
Model Name/Number
GW-42J
Power Source
Electric
Bar Dimensions
32 mm (TMT Bar)
Brand
Topall
Max Bending Angle
180 Degree
Max Bending Radius
21 mm
Frequency
50 Hz
Country of Origin
Made in India
Technical Variants
| Specification | Details |
| Voltage | 440 V |
| Brand | Topall Impex |

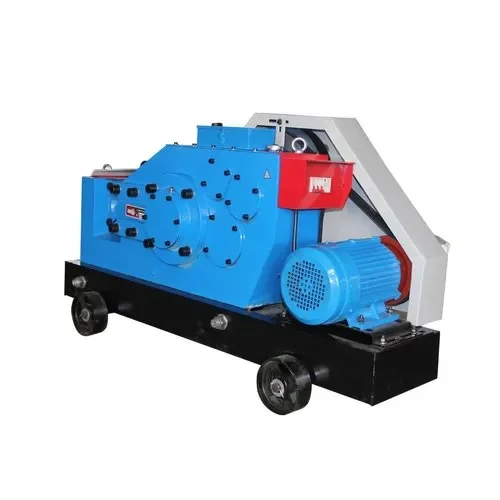

| Model Name/Number | Bar Cutting Machine GQ50 |
| Material | Mild Steel |
| Cutting Range | 40mm |
| Power | 4kW |
| Automation Grade | Semi Automatic |
| Minimum order quantity | 10 Piece |

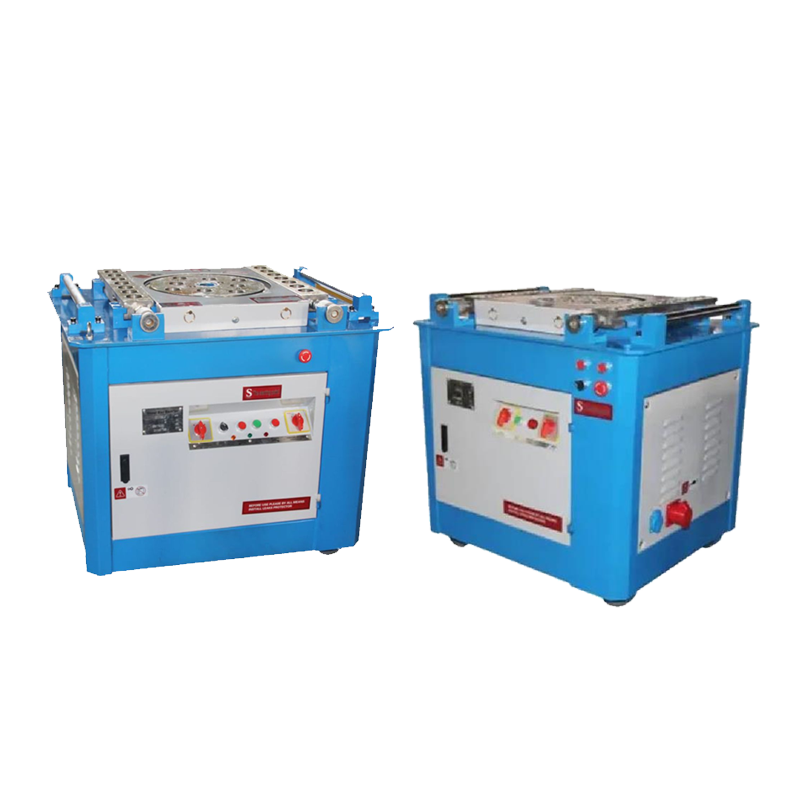

| Model | GW32 - GW52J |
| Bending Range (mm) | 32 - 40 |
| Round Bar (mm) | 40 - 50 |
| Working Plate (mm) | 10 - 12 |
| Working Disc Dia (mm) | 340 - 400 |
| Power (KW) | 3 - 4 |
| Speed (rpm) | 1440 |
| Voltage (V) | 145 - 415 |
| Weight (kg) | 275 |
| Dimension (L*W*H) | 850x740x830 (mm) - 970x770x880 (mm) |
| Usage/Application | Bar Straightening Machine |
| Gauge | 26 SWG |
| Power Consuption | 2 Hp |
| Suitable For | Mild Steel |
| Automation Grade | Semi Automatic |
| Weight | 320 Kg |
| Speed | 30 m/min |
| Voltage | 3 ph,380 V |
| Cutting Length | 800 mm |
| Voltage | 380 V |
| Usage/Application | Bar Threading Machine |
| Suitable Diameter | 12-40 mm |
| Model Name/Number | CDRG45 |
| Automatic Grade | Semi-Automatic |
| Weight | 320 kg |
| Phase Type | Three Phase |
| Frequency | 50 Hz |
| Brand | Topall Impex |
| Diameter | 42mm |
| Country of Origin | Made in India |
| Usage/Application | Scrap Straightening Machine |
| Bending Material | Steel Bar |
| Power Source | Electric |
| Power | 3 KW |
| Bending Range | 32 mm |
| Weight | 320 Kg |
| Speed | 1440 RPM |
| Voltage | 3 ph,380 V |
| Frequency | 50 Hz |
| Country of Origin | Made in India |
| Model | GF 20 - GW 20 S |
| Bending Range (mm) | 4-16 |
| Present Angle | 90°/135° |
| Working Speed (r/min) | 25-30 |
| Angle Feed | Manual - Automatic |
| Power (Kw) | 2.2 |
| Voltage (v) | 220 -415 |
| Weight (kg) | 90 - 95 |
| Dimension | 800×550×850 |
| Model | GT4-12 - GT4-14 |
| Straightening Range (mm) | Rebar 6-10 - Rebar 4-12 |
| Power (KW) | 7.5 - 9 |
| Speed (m/min) | 4 - 30-50 |
| Weight (Kg) | 245 - 500 |
| Oiling (Kg) | 15-20 - 20-25 |
