Concrete Laying Finishing Equipement

Technical Intelligence
Usage/Application
Concrete Processing Machine
Voltage
415 V
Motor Speed
2880 rpm
Power Source
Electric
Weight
400Kgs
Motor Power
5 HP
Model
GQ50-H
Max Bending Radius
21 mm
Frequency
50 Hz
Country of Origin
Made in India

Concrete Processing Machine is mainly used for road maintenance work, slitting and cutting concrete and asphalt road. It's widely used for cutting concrete, masonry, brick, asphalt, tile, and other solid materials. These machines are ideal for commercial and industrial applications, with the ability to turn dull, rough, or uneven concrete surfaces into polished, visually appealing, and low-maintenance floors. Precisely engineered for efficiency, our machines provide a perfect solution for polishing large areas in minimum time and with consistent results. Be it warehouses, shopping malls, office floors, or residential areas, the Concrete Polishing Machine we manufacture provides long-lasting shine and enhanced durability for concrete surfaces. Our equipment is ruggedly built with advanced polishing technology and user-friendly features that make it reliable, efficient, and easy to operate. The perfect tool for contractors, flooring professionals, and facility managers.

Technical Variants

Usage/Application Laser Levelling Machine
Rated Motor Power 5.5 HP
Surface Recommendation Concrete & Industrial Flooring
Drive Type Electric Drive
Current Type 220-240 V | 50 Hz
Motor Phase Three Phase
Noise Level Low Noise Operation
Weight 280 kg
Usage/Application Bull Float
Blade Material Aluminium Alloy
Width 1200 mm
Brand Topall
Finishing Smooth Finish
Operating Mode Manual
Length 1800 mm
Bracket Material Cast Aluminum
Usage/Application Bump Cutter
Handle Length 1.8 m
Operation Mode Manual
Brand Topall
Blade Lenght 1.2 m
Number of handles 2
package size 1900 × 350 × 250 mm
Weight 18 kg
Model CVS25C - CVS25E
Weight (Kgs) 20 - 25
Dimension (mm) 2000 × 200 × 960
Drive Flexible Shaft , Shutter Motor
Power Air Cooled, 4-Cycle, Gasoline , Three Phase Electrical
Type Honda GX35, Imported
Max Output 0.2 HP - 1.2 HP
Fuel Tank (Gal) 0.65 Gal
Usage/Application Groove Cutter
Driving Method Manual Push
Engine Type Honda GX270 Petrol
Operation Mass 90 – 110 kg
Water Tank Capacity 20 – 25 L
Depth Adjustment Adjustable Cutting Depth
Engine 5.5 – 6.5 HP Honda / Greaves
Blade Size 300 – 400 mm
Usage/Application Ride on Trowel
Material Power Trowel
Power 8 – 12 HP
Disc Thickness 2 – 3 mm
Weight 250 – 400 kg
Size 1900 × 1000 × 1100 mm
Round Disc Blade Diameter 900 – 1000 mm
Quantity Of Blade 10 blades

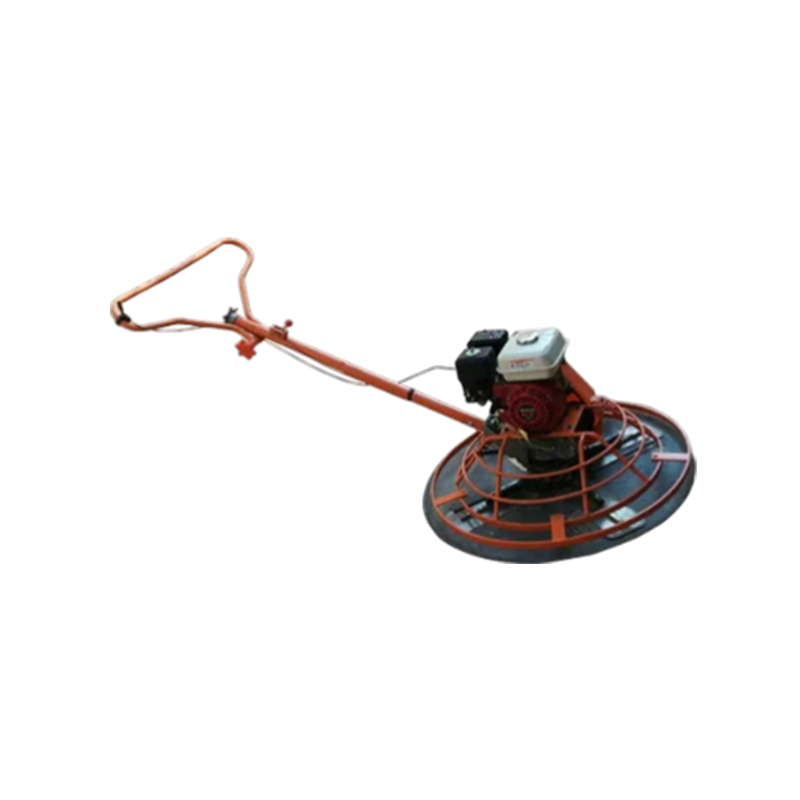

Usage/Application Power Trowel
Working Diameter 900 – 1000 mm
Dimensions 2000 × 1000 × 1100 mm
Engine Power 8 – 10 HP
Model CWD 40
Oil Tank Capacity 3 – 5 L
Pan Quantity 1 Piece
Blade Quantity 4 – 6 Blades
Model QJM 600
Working Diameter (mm) 600
Engine Type Honda GX 160
Max. Output (HP) 5.5 – 6.5 HP
Weight (Kg) 60 – 75 kg
Dimension (mm) 1200 × 600 × 900 mm
Usage/Application High Frequency Vibrators
Input Voltage 220 – 415 V
Power 42v
Model Name/Number HVU110
Brand Topall
Output Power 1.1 kW
Input Phase Three Phase
Speed 12,000 – 14,000 RPM

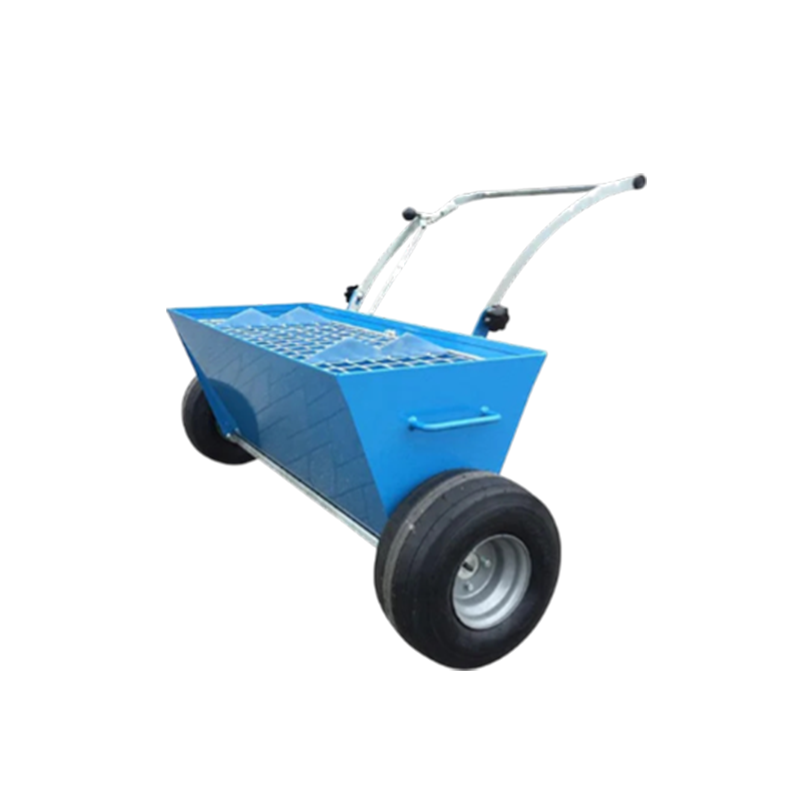

Usage/Application Hardener Spreader
Automation Grade Semi Automatic
Product Type Surface Finishing Equipment
Brand Topall
Roller Type Spiked Roller / Spreader Roller
Capacity 25 – 50 kg per cycle
Material Mild Steel / Aluminium Body
Fuel Tank Capacity Not Applicable (Manual / Battery Operated)
Usage/Application Walk Behind Laser Screed Machines
Rated Motor Power 5.5 – 7.5 HP
Surface Recommendation Concrete Industrial Flooring
Drive Type Hydraulic
Current Type AC Current
Motor Phase Three Phase
Noise Level Low Noise Operation
Weight 250 – 320 kg

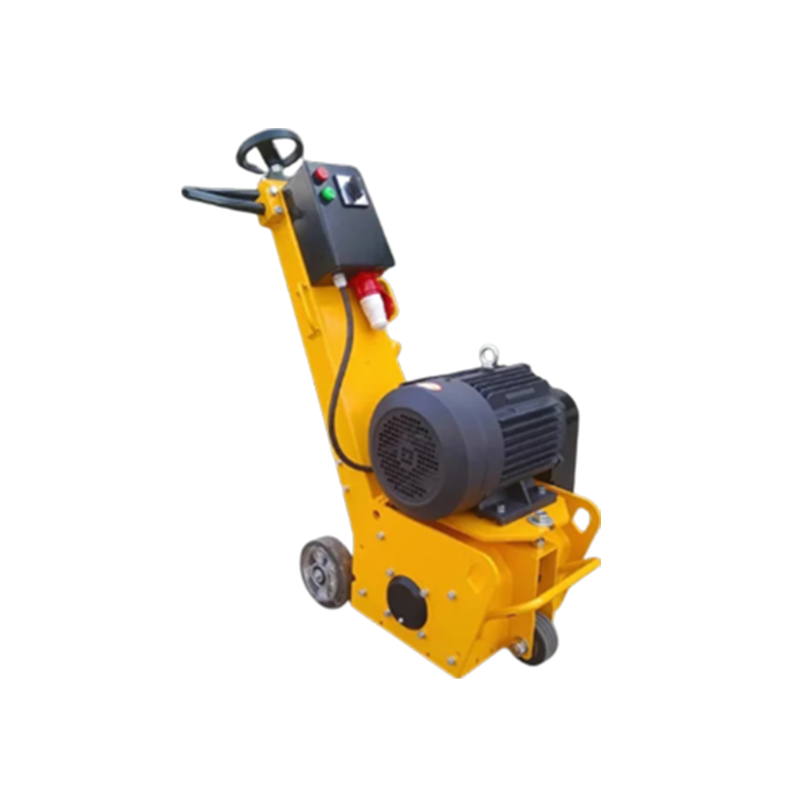

Model GT 250
Weight (KG) 120 – 150 kg
Dimension (MM) 1200 × 600 × 1000 mm
Working Width (MM) 250 mm
Voltage 220 – 415 V
Cutter Quantity (PCS) 6 – 8 PCS
Model GT-630
Weight (KG) 180 – 220 kg
Voltage (V) 220 – 415 V
Working Width (MM) 630 mm
Inverter (KW) 3 – 4 kW
Motor Power (KW) 4 – 5.5 kW
Mill Speed (RPM) 300 – 600 RPM
Model GT330 / GT400
Motor Power 3 – 5.5 kW
Inverter Speed 300 – 1800 RPM
Power Supply 220 – 415 V
Weight 120 – 180 kg
Vacuum Motor Power 1.5 – 2.2 kW
Dimension (L×W×H) 1100 × 450 × 900 mm
Model CQF 20 / CQF 28 / CQF 40
Blade Size 300 / 350 / 400 mm
Cutting Depth 80 – 150 mm / 150 – 220 mm / 220 – 300 mm
Engine Type Honda / Greaves / Electric Motor / VST Shakti Engine
Power (HP) 5.5 – 13 HP
Water Tank 20 Ltr / 30 Ltr / 40 Ltr
Depth Adjustment Manual Adjustable System
Weight 80 – 150 kg
Model QUM-80
Blade Quantity 8 – 10 Blades
Pan Quantity 2 Pcs
Working Speed 60 – 130 RPM
Working Diameter 1900 – 2000 mm
Engine Honda GX690 24HP
Max Speed 135 RPM
Fuel Tank Capacity 15 – 20 L
Model CWT 40 / CWT 40L / DMR 900
Working Diameter (mm) 900 – 1000 mm
Engine Type Honda GX 160
Max. Output (HP) 5.5 – 6.5 HP
Weight (Kg) 70 – 90 kg
Dimension (mm) 1200 × 1000 × 850 mm

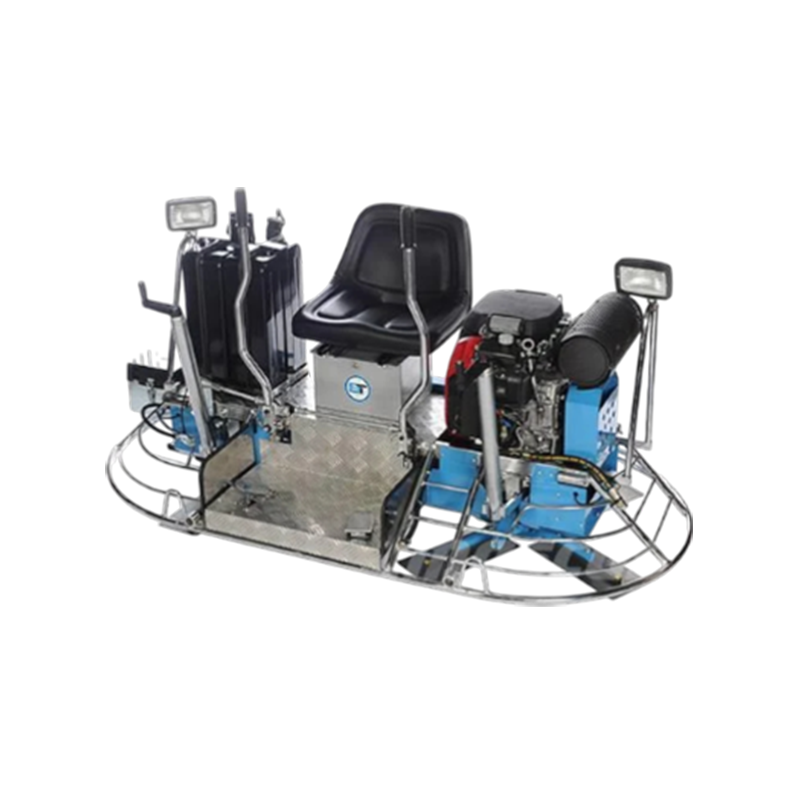

Model BT 900 - 2PF H24
Type Low Ride Power Trowel
Engine Type Honda GX 690, 24HP
Blade Rotation Speed 60 – 130 RPM
Float Pans 2 Pans
Blades 8 Pcs
Dimensions (mm) 2000 × 1000 × 1150 mm
Weight Dry (kg) 280 – 350 kg
Model BT-60H
Working Diameter (mm) 600 mm
Engine Type Honda GX 160
Max. Output (HP) 5.5 – 6.5 HP
Weight (Kg) 60 – 75 kg
Dimension (mm) 1200 × 600 × 900 mm
Model BT-90H
Working Diameter (mm) 900 mm
Engine Type Honda GX 160
Max. Output (HP) 8 – 10 HP
Weight (Kg) 90 – 110 kg
Dimension (mm) 1800 × 900 × 1000 mm

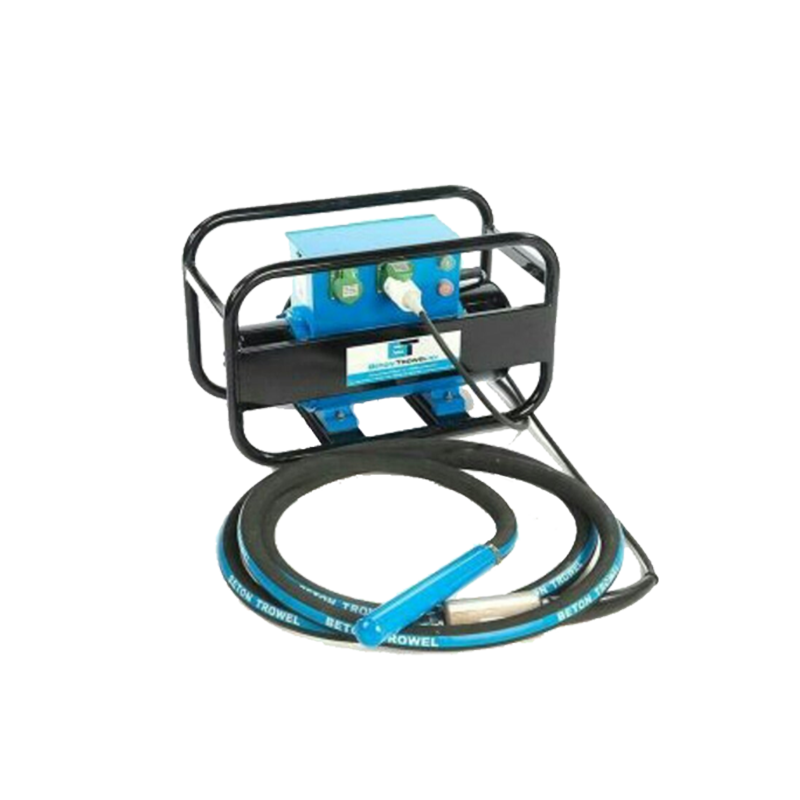

Model BTFC/45/4, BTFC200/18/2
Capacity 45 kVA / 200 kVA
Input (Phase/Hz/V/A) 3 Phase / 50 Hz / 380–415 V / 63–300 A
Output (Phase/Hz/V/A) 3 Phase / 200 Hz / 42–48 V / 80–400 A
Weight 120 – 250 kg
Units Driving 2 Needles, 4 Needles

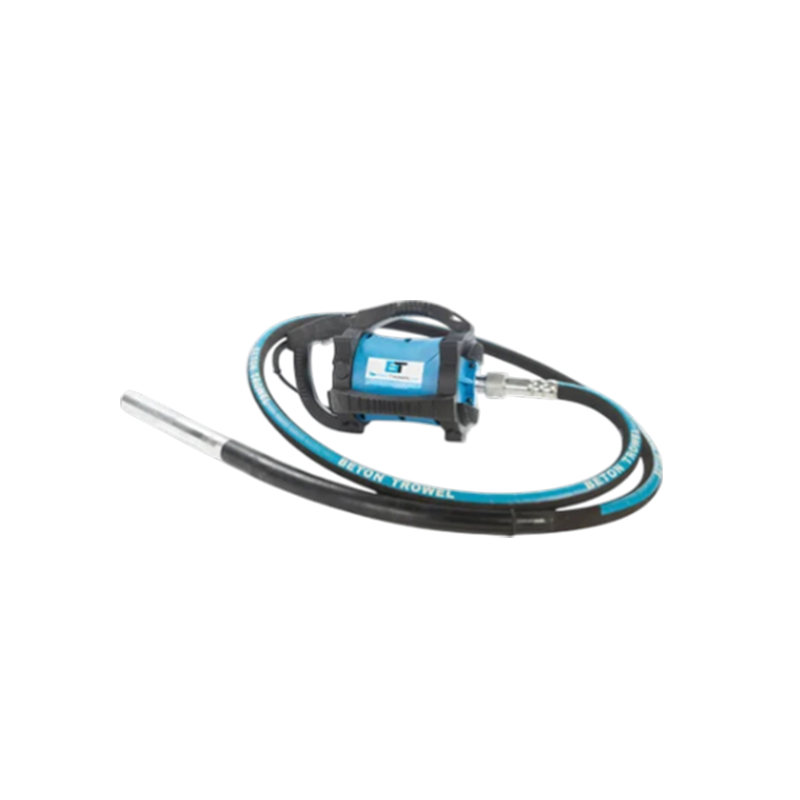

Model HVU110, HVU220
Voltage 220 – 415 V
Power (Kw) 1.1 kW / 2.2 kW
Motor Speed 12,000 – 14,000 RPM
Weight 12 – 18 kg / 18 – 25 kg
Model HDV38/2, HDV38/4
Dia 38mm
Length 2m, 4m
Weight 18 – 25 kg / 25 – 35 kg
Frequency 200 – 250 Hz
Amplitude 0.8 – 1.2 mm
Model LS-325
Generator 5 – 7.5 kVA Diesel Generator
Package Box 1:2700*1050*1350mm Box2:2900*750*320
Laser Generator High Precision Rotary Laser
Laser Receiver Digital Laser Receiver System
Control System Automatic Hydraulic Control System
Driving System Hydraulic Drive
Airframe Adjustment Automatic Level Adjustment

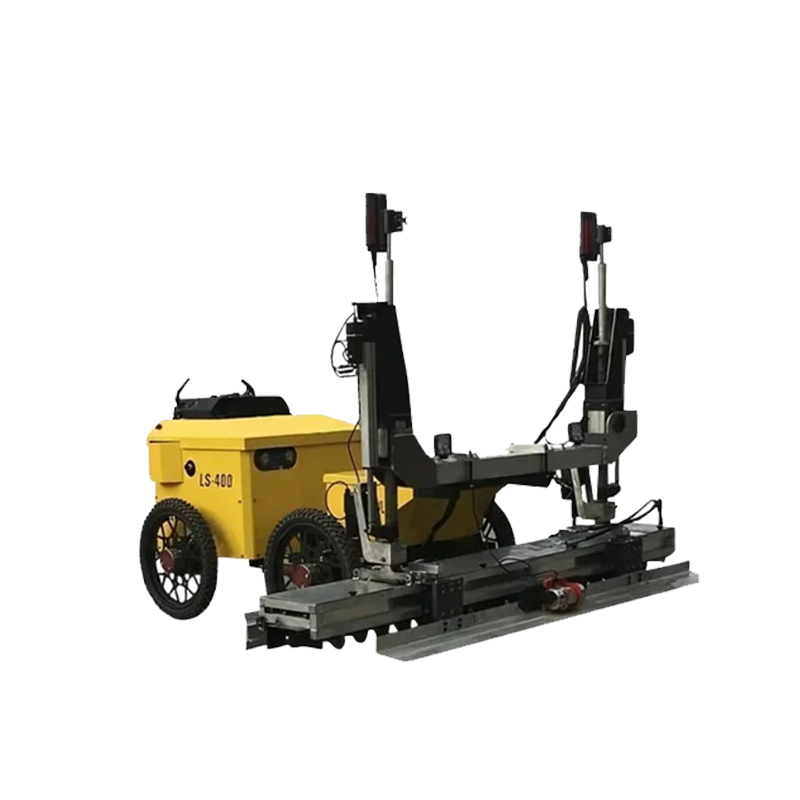

Model LS-400
Engine Model Honda GX / Equivalent Diesel Option
Engine Type Petrol / Diesel Engine
Engine Power (Kw) 7.5 – 9 kW
Lubrication Oil (L) 1.2 – 1.5 L
Fuel Tank Capacity (L) 15 – 20 L
Type of Leveling Laser Guided Automatic Leveling
Paving Width (mm) 2500 – 3000 mm
Model Name Concrete Paver XP-900
Paving Width 3.5 to 9 Meters
Engine Power 110 HP Diesel Engine
Paving Speed 0–5 M/min
Working Efficiency 400 m²/hour
Vibration System High-Frequency Vibration Motor
Leveling Accuracy ±2 mm
Control Panel Digital Smart Control System

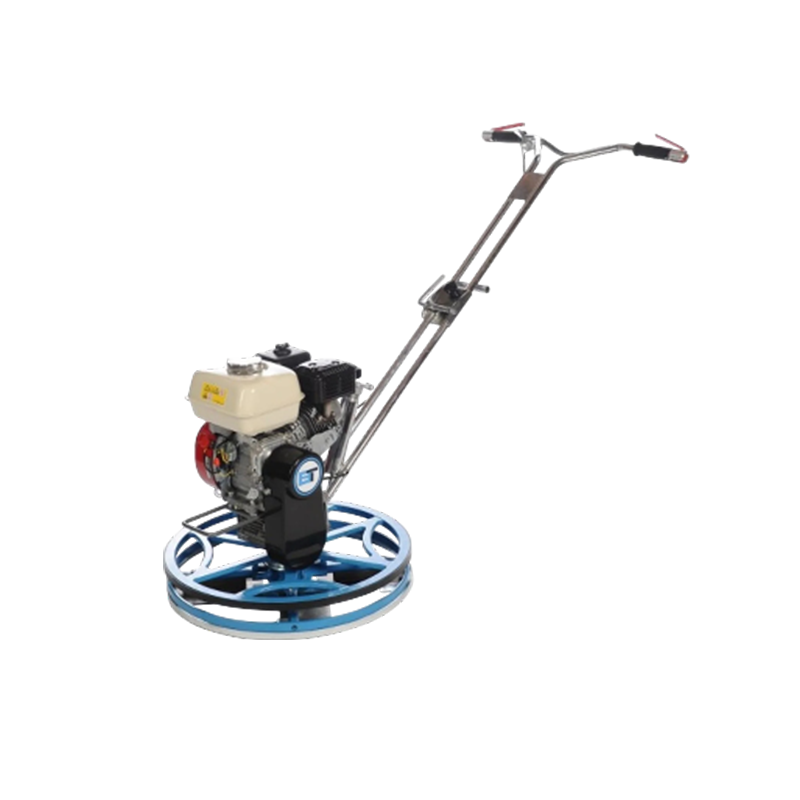

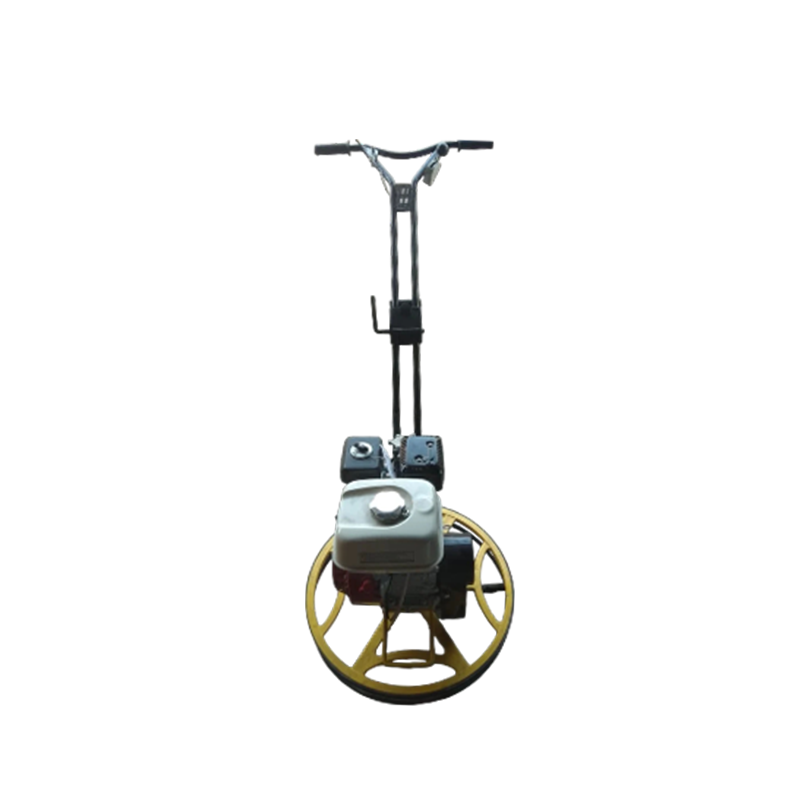

Model Name BT Edger Trowel
Trowel Diameter 600 mm
Engine Type Honda GX160 / Equivalent
Power 5.5 – 6.5 HP
Trowel Speed 60 – 130 RPM
Blade Size 150 × 350 mm
Weight 60 – 75 kg
Operating Handle Foldable with Adjustable Height
Model BT Floater 100
Engine Type Petrol Honda GX160
Power 5.5 – 6.5 HP
Working Width 1000 mm
Blade Size 350 mm x 150 mm
Blade Quantity 4
Fuel Tank Capacity 3.6 – 5.0 L
Weight 70 – 90 kg
Model GX65 Grinding Machine
Grinding Wheel Size 250-300 mm
Power Supply 3 Phase, 415V
Motor Capacity 4 – 5.5 kW
Table Size 600 × 300 mm
Surface Finish High Precision Grinding
Max Workload 200–300 kg
Cooling System Water Cooling System

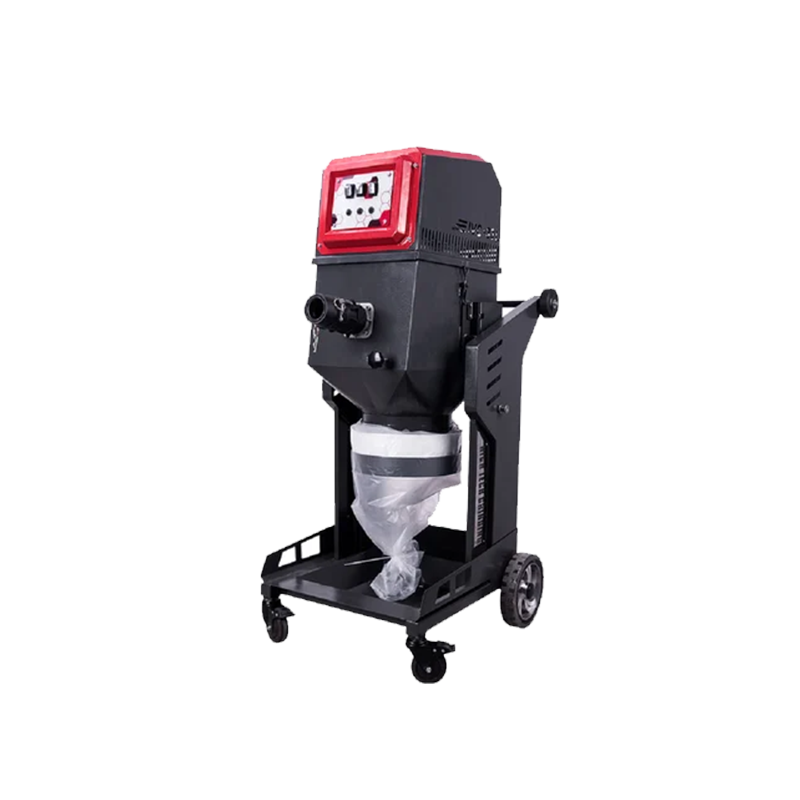

Model IVC-F33L
Type Industrial Vacuum Cleaner
Power 1200 – 1500 W
Voltage 220 – 240 V
Tank Capacity 33 L
Material Stainless Steel
Filter Type HEPA / Cartridge Filter
Noise Level ≤ 70 dB

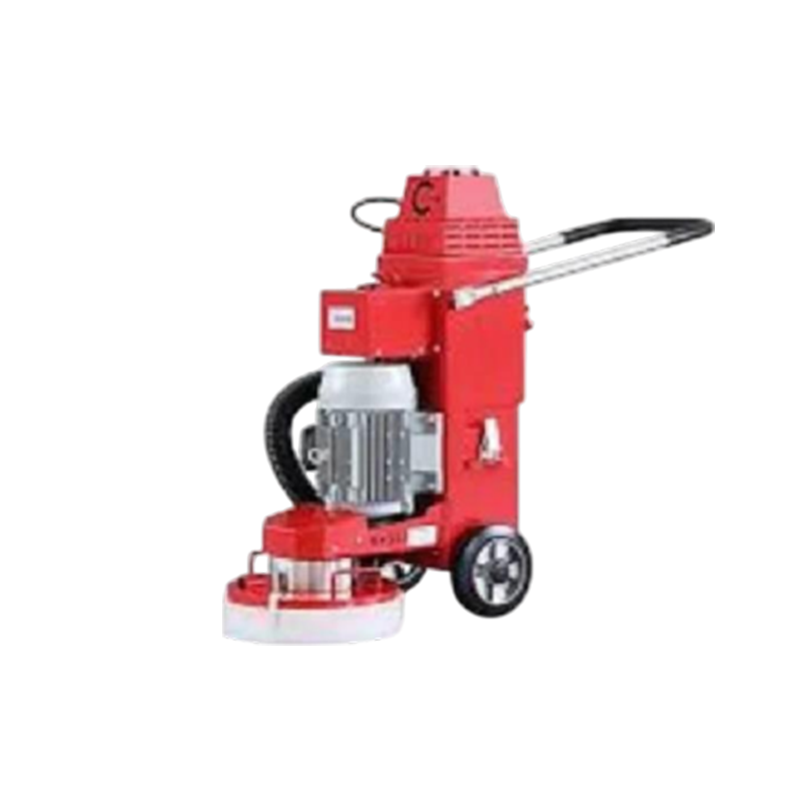

Model Sino S300
Type Surface Grinding Machine
Grinding Area 300 mm
Motor Power 3 – 4 kW
Table Load Capacity 150 – 200 kg
Voltage 220 – 415 V
Wheel Speed 300 – 600 RPM
Cooling System Air Cooling System

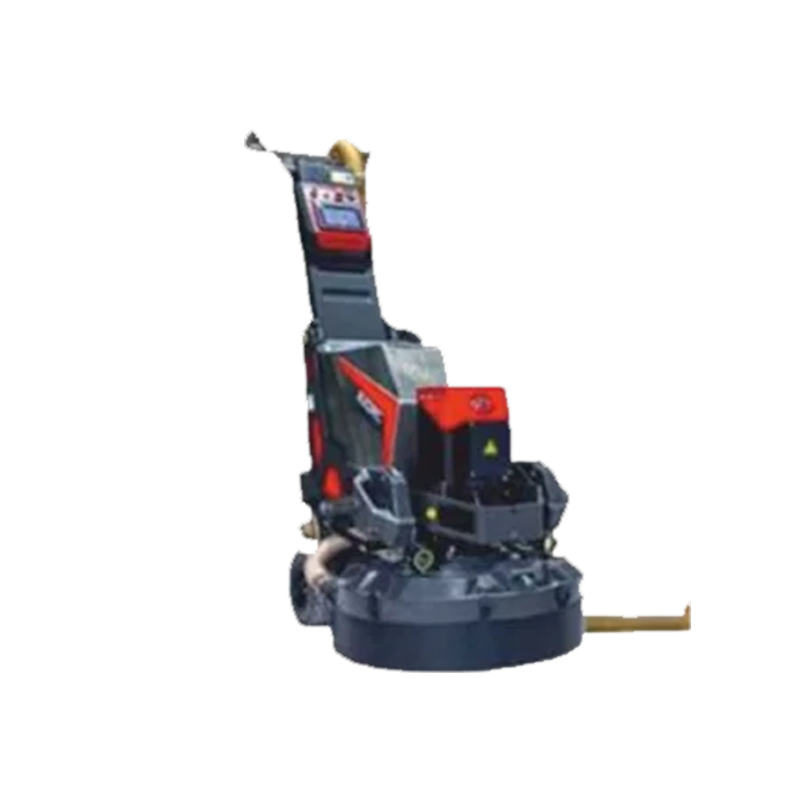

Model HTG-820C
Type Autopilot Planetary Grinder
Working Width 820 mm
Grinding Disc 3 × 270 mm Discs
Voltage 380 – 415 V
Motor Power 15 – 18 kW
Rotation Speed 300 – 1800 RPM
Weight 480 – 550 kg
Model Name IVC-45L
Working Width 820 mm
Grinding Disc 4 Discs / 12 Heads
Motor Power 15 HP (11 kW)
Voltage 380V-440V 3 Phase
Speed Range 300–1800 RPM
Water Tank Capacity 20 Litres
Net Weight 580 kg

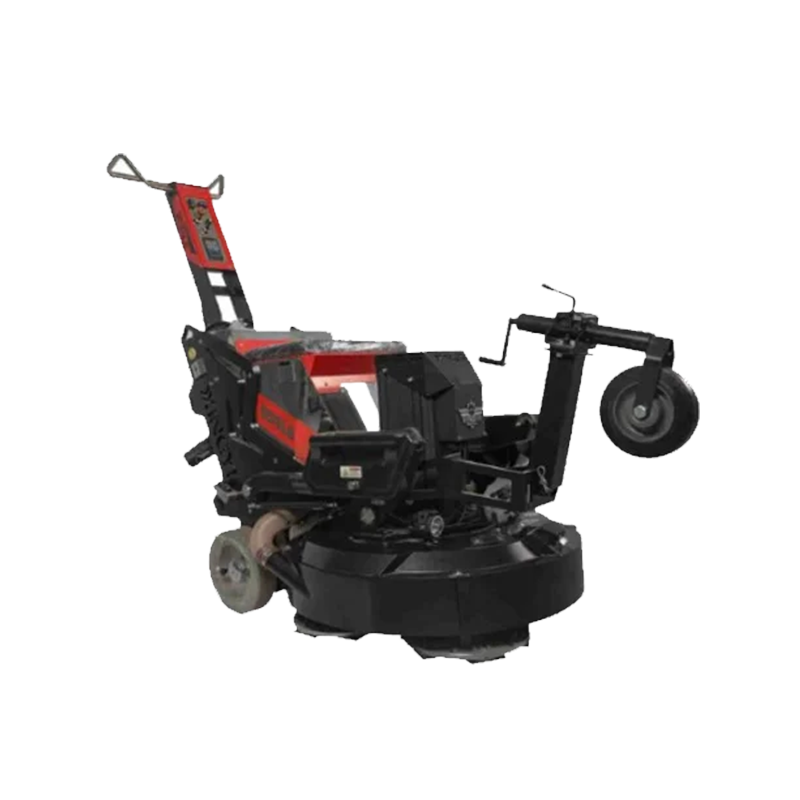

Model 995 LE
Grinding Width 995 mm
Power Output 15 – 18 kW
Voltage 380 – 415 V
Grinding Disc Speed 300 – 1800 RPM
Weight 600 Kg
Grinding Pressure Adjustable
Dust Collection Port Dual Dust Extraction Port

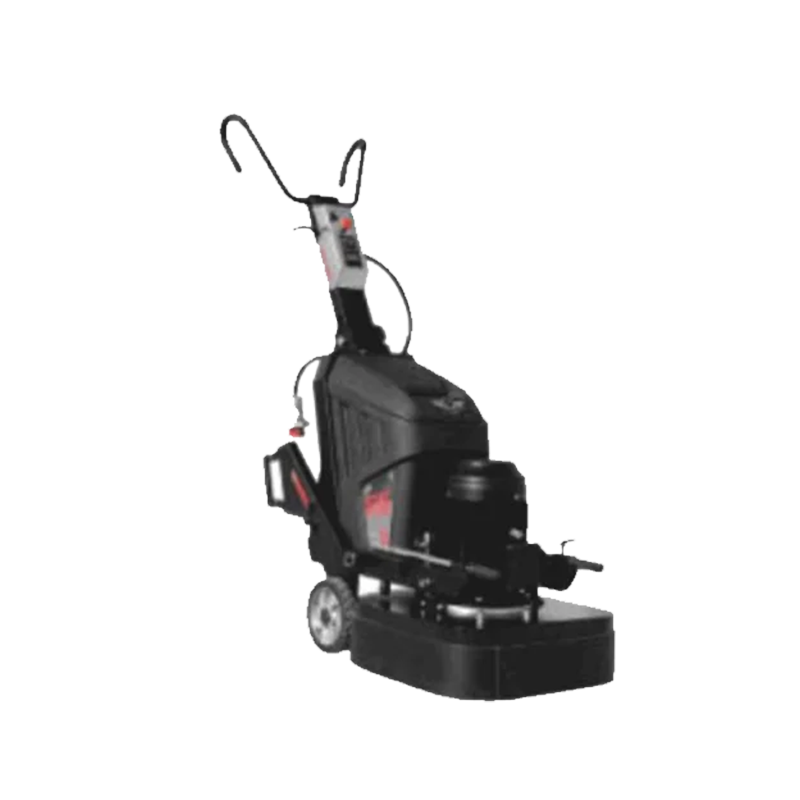

Model GX688-4A
Power Output 15 – 22 kW
Voltage 380 – 415 V
Working Width 680 mm
Grinding Heads 4 Heads Planetary System
Speed 300–1800 RPM
Water Tank Capacity 30 – 40 L
Machine Weight 450 – 600 kg

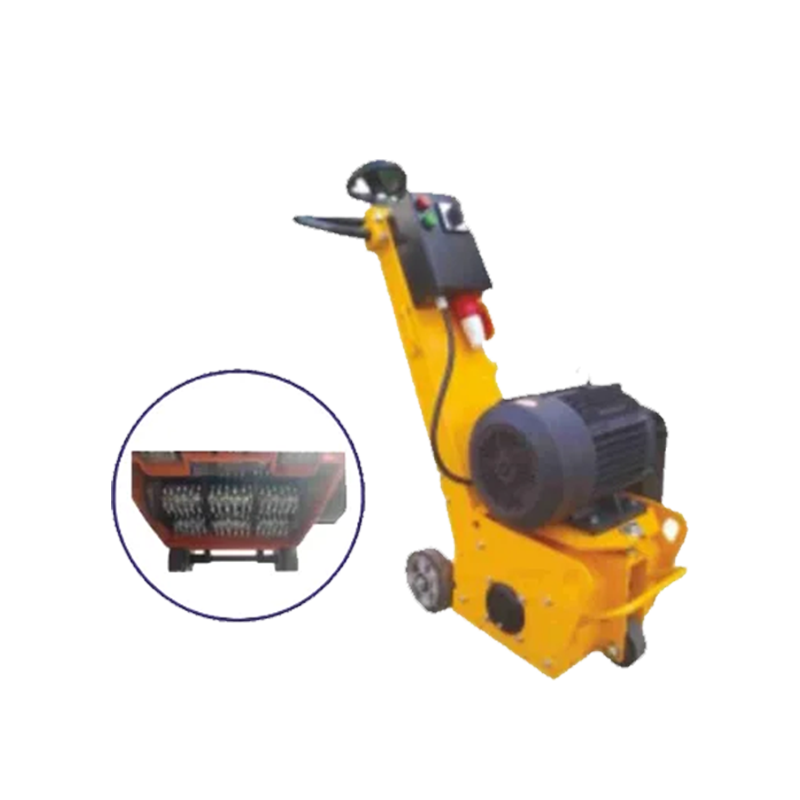

Model GT250
Motor Power 7.5 – 11 kW
Voltage 380 – 415 V
Grinding Width 250 mm
Disc Speed 1800 – 3600 RPM
Weight 120 – 150 kg
Dust Port Yes
Application Area Concrete Surface Scarifying & Roughening

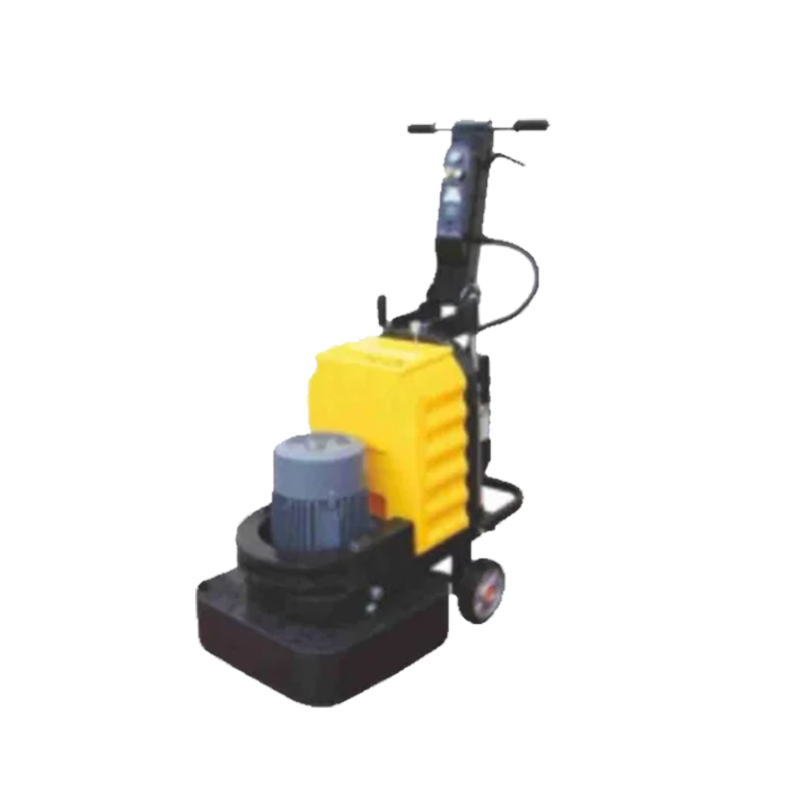

Model GT630
Grinding Width 630 mm
Motor Power 4 – 5.5 kW
Voltage 220 – 415 V
Speed Range 300–600 RPM
Working Pressure Adjustable
Tool Holder Magnetic / Quick Change Holder System
Weight 180 – 220 kg

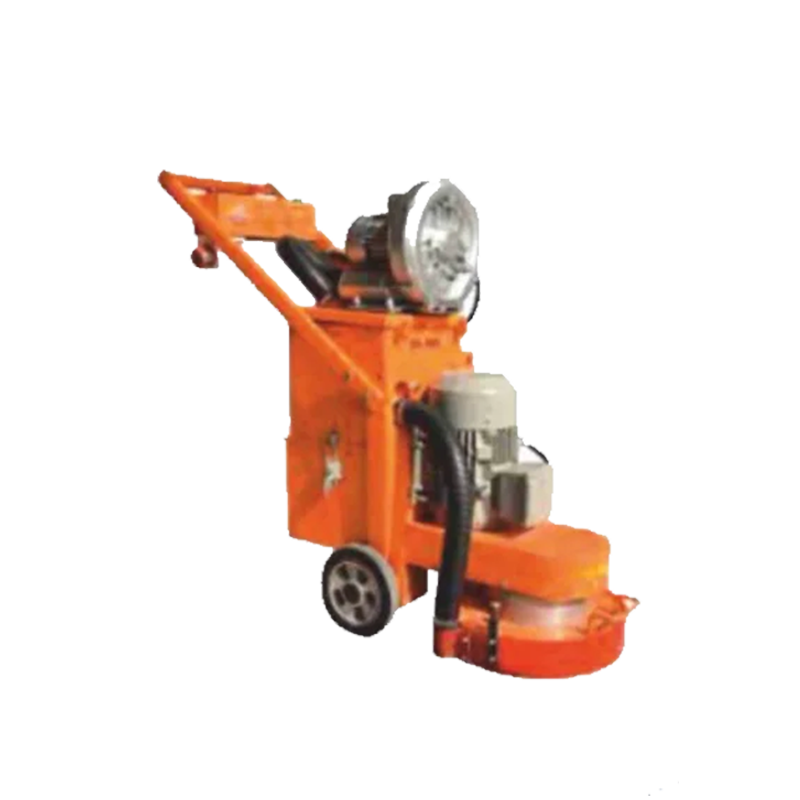

Model GT330
Motor Power 3 – 4 kW
Voltage 220 – 415 V
Grinding Width 330 mm
Disc Speed 300–1800 RPM
Number of Discs 3
Weight 120-150 kg
Water Tank Capacity 10-15L
Model HTG-460
Grinding Width 460 mm
Motor Power 4 – 5.5 kW
Voltage 220V / 415V
Phase Single / Three Phase
Rotation Speed 300–1800 RPM
Tool Holder Type Magnetic Plate
Water Tank Capacity 15-20 Liters

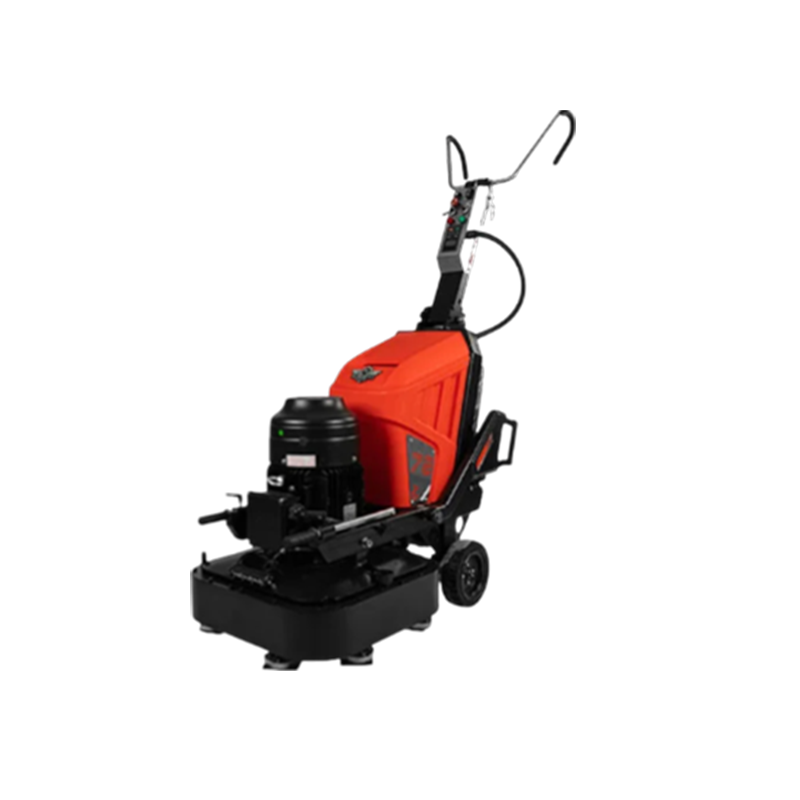

Model 580-2 Grinding Machine
Power 5.5 – 7.5 kW
Voltage 220 – 415 V
Working Width 580 mm
Grinding Heads 2 Heads System
Weight 200 – 250 kg
Rotation Speed 300–1500 rpm
Water Tank 30 Liters

Topall Impex is leading Best Manufacturer of Concrete Processing Machine in India Our concrete cutter could be easily operated on cutting concrete and asphalt floor of road, bridge, parking lot, square, factories house floors and so on. The Concrete Polishing Machine we make includes creative polishing technology that assures high precision each and every time. Our machines are designed with diamond-embedded polishing pads serving to give exceptionally good results in grinding, honing, and polishing concrete surfaces. The multi-head design is adjustable, making it versatile with respect to functionality; hence, a user may easily toggle between different levels of polishing, from very coarse surface preparation to high-gloss finishing. This type of pad, due to its high rotational speed, ensures very fast and even scratch removal for the surface, making it very smooth with a uniform texture. The generation of minimal dust keeps your workplace much cleaner while you work out higher-quality polishing. Thanks to all these advantages, our machine provides an ultimate opportunity to receive professional-grade polished surfaces.

Our company's Concrete Polishing Machine is driven with an effective and powerful electrical motor that provides the applied torque and speed for adequate grinding. The motor must keep the polishing heads regularly turning in heavy work application situations or during long intervals. High-performance design permitting the immediate execution of polishing when substantial project timelines are badly affected. While powerful, the motor is energy-efficient to make sure that operational costs remain as low as possible due to minimal electricity consumption. The motor is durable, reliable, and has inbuilt cooling systems that will prevent overheating, therefore being a very reliable choice for contractors dealing with large-scale flooring projects.

Our Concrete Polishing Machine considers the convenience of the operator in its operation and comfort during long processes. The machine has handles with an ergonomic design for a firm and comfortable grip for better control. It features intuitive buttons and levers that make operation quite easy even without extensive training or experience. Its lightweight yet sturdy body will be able to keep it moving across the workspace, while the addition of wheels will make steering and transporting even easier. It has clear and precise setting of controls to quickly change pad speed or pressure, enhancing machine flexibility when working under diversified conditions. These make operation easy; hence, productivity is improved with reduced operator fatigue.
