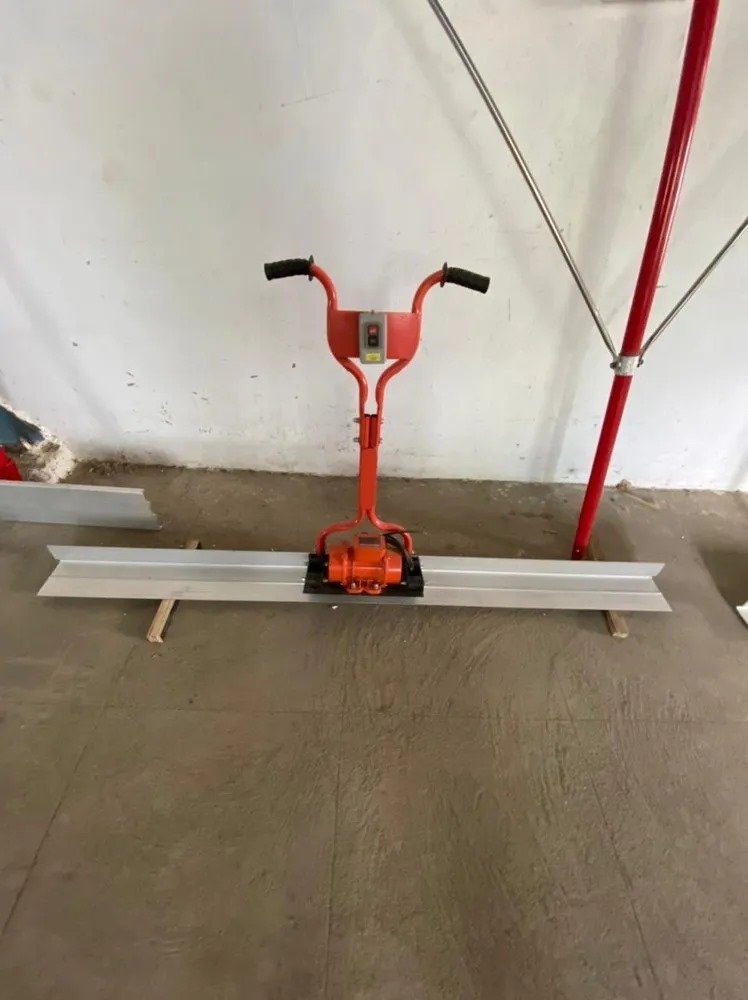

Screed Vibrator
Technical Intelligence
Model
CVS25C - CVS25E
Weight (Kgs)
20 - 25
Dimension (mm)
2000 × 200 × 960
Drive
Flexible Shaft , Shutter Motor
Power
Air Cooled, 4-Cycle, Gasoline , Three Phase Electrical
Type
Honda GX35, Imported
Max Output
0.2 HP - 1.2 HP
Fuel Tank (Gal)
0.65 Gal
Our customer friendly approaches and optimum quality Screed Vibrator has enabled us to attain vast clientele in the market. This is manufactured using excellent quality materials as per the standards penciled by the industry. The Screed Vibrator are for grinding, polishing, and finishing the concrete floor in order to make it smooth, shiny, and durable. Topall Impex - leading brand which is a one stop solution for all you. Catering the requiremnets of Our customers ,We have introduced new machines for convinence of work. These machines are crucial in modern construction and flooring projects. They offer an opportunity to change uninteresting and rough concrete surfaces into professional finished floors. It grinds layers of concrete using diamond or abrasive tools into a smooth, shiny surface that really brings out the natural brilliance of the material. In fact, this polished floor has proved to be as beautiful as it is durable and cheap. These machines have proved quite indispensable in polishing concrete for various uses in commercial establishments, industrial warehouses, residential places, and public facilities.
Technical Variants
| Usage/Application | Laser Levelling Machine |
| Rated Motor Power | 5.5 HP |
| Surface Recommendation | Concrete & Industrial Flooring |
| Drive Type | Electric Drive |
| Current Type | 220-240 V | 50 Hz |
| Motor Phase | Three Phase |
| Noise Level | Low Noise Operation |
| Weight | 280 kg |
| Country of Origin | Made in India |
| Usage/Application | Bull Float |
| Blade Material | Aluminium Alloy |
| Width | 1200 mm |
| Brand | Topall |
| Finishing | Smooth Finish |
| Operating Mode | Manual |
| Length | 1800 mm |
| Bracket Material | Cast Aluminum |
| Bracket Type | Adjustable Bracket |
| Country of Origin | Made in India |
| Usage/Application | Bump Cutter |
| Handle Length | 1.8 m |
| Operation Mode | Manual |
| Brand | Topall |
| Blade Lenght | 1.2 m |
| Number of handles | 2 |
| package size | 1900 × 350 × 250 mm |
| Weight | 18 kg |
| Screed Material | Aluminium Alloy |
| Country of Origin | Made in India |
| Usage/Application | Groove Cutter |
| Driving Method | Manual Push |
| Engine Type | Honda GX270 Petrol |
| Operation Mass | 90 – 110 kg |
| Water Tank Capacity | 20 – 25 L |
| Depth Adjustment | Adjustable Cutting Depth |
| Engine | 5.5 – 6.5 HP Honda / Greaves |
| Blade Size | 300 – 400 mm |
| Model | CQF16 |
| Country of Origin | Made in India |
| Usage/Application | Ride on Trowel |
| Material | Power Trowel |
| Power | 8 – 12 HP |
| Disc Thickness | 2 – 3 mm |
| Weight | 250 – 400 kg |
| Size | 1900 × 1000 × 1100 mm |
| Round Disc Blade Diameter | 900 – 1000 mm |
| Quantity Of Blade | 10 blades |
| Engine Type | Kohler CH 940 |
| Country of Origin | Made in India |
| Usage/Application | Power Trowel |
| Working Diameter | 900 – 1000 mm |
| Dimensions | 2000 × 1000 × 1100 mm |
| Engine Power | 8 – 10 HP |
| Model | CWD 40 |
| Oil Tank Capacity | 3 – 5 L |
| Pan Quantity | 1 Piece |
| Blade Quantity | 4 – 6 Blades |
| Working Speed | 70 – 140 RPM |
| Country of Origin | Made in India |
| Model | QJM 600 |
| Working Diameter (mm) | 600 |
| Engine Type | Honda GX 160 |
| Max. Output (HP) | 5.5 – 6.5 HP |
| Weight (Kg) | 60 – 75 kg |
| Dimension (mm) | 1200 × 600 × 900 mm |
| Usage/Application | High Frequency Vibrators |
| Input Voltage | 220 – 415 V |
| Power | 42v |
| Model Name/Number | HVU110 |
| Brand | Topall |
| Output Power | 1.1 kW |
| Input Phase | Three Phase |
| Speed | 12,000 – 14,000 RPM |
| Phase | 3 |
| Country of Origin | Made in India |
| Usage/Application | Hardener Spreader |
| Automation Grade | Semi Automatic |
| Product Type | Surface Finishing Equipment |
| Brand | Topall |
| Roller Type | Spiked Roller / Spreader Roller |
| Capacity | 25 – 50 kg per cycle |
| Material | Mild Steel / Aluminium Body |
| Fuel Tank Capacity | Not Applicable (Manual / Battery Operated) |
| Minimum order quantity | 1 Number |
| Country of Origin | Made in India |
| Usage/Application | Walk Behind Laser Screed Machines |
| Rated Motor Power | 5.5 – 7.5 HP |
| Surface Recommendation | Concrete Industrial Flooring |
| Drive Type | Hydraulic |
| Current Type | AC Current |
| Motor Phase | Three Phase |
| Noise Level | Low Noise Operation |
| Weight | 250 – 320 kg |
| Country of Origin | Made in India |
| Model | GT 250 |
| Weight (KG) | 120 – 150 kg |
| Dimension (MM) | 1200 × 600 × 1000 mm |
| Working Width (MM) | 250 mm |
| Voltage | 220 – 415 V |
| Cutter Quantity (PCS) | 6 – 8 PCS |
| Model | GT-630 |
| Weight (KG) | 180 – 220 kg |
| Voltage (V) | 220 – 415 V |
| Working Width (MM) | 630 mm |
| Inverter (KW) | 3 – 4 kW |
| Motor Power (KW) | 4 – 5.5 kW |
| Mill Speed (RPM) | 300 – 600 RPM |
| Model | GT330 / GT400 |
| Motor Power | 3 – 5.5 kW |
| Inverter Speed | 300 – 1800 RPM |
| Power Supply | 220 – 415 V |
| Weight | 120 – 180 kg |
| Vacuum Motor Power | 1.5 – 2.2 kW |
| Dimension (L×W×H) | 1100 × 450 × 900 mm |
| Model | CQF 20 / CQF 28 / CQF 40 |
| Blade Size | 300 / 350 / 400 mm |
| Cutting Depth | 80 – 150 mm / 150 – 220 mm / 220 – 300 mm |
| Engine Type | Honda / Greaves / Electric Motor / VST Shakti Engine |
| Power (HP) | 5.5 – 13 HP |
| Water Tank | 20 Ltr / 30 Ltr / 40 Ltr |
| Depth Adjustment | Manual Adjustable System |
| Weight | 80 – 150 kg |
| Model | QUM-80 |
| Blade Quantity | 8 – 10 Blades |
| Pan Quantity | 2 Pcs |
| Working Speed | 60 – 130 RPM |
| Working Diameter | 1900 – 2000 mm |
| Engine | Honda GX690 24HP |
| Max Speed | 135 RPM |
| Fuel Tank Capacity | 15 – 20 L |
| Disc Diameter | 900 – 1000 mm |
| Spare Parts | Blades, Pan, Control Lever Set |
| Pan | Heavy Duty Finishing Pan |
| Dimension (mm) | 2000 × 1050 × 1150 mm |
| Weight (Kg) | 280 – 350 kg |
| Model | CWT 40 / CWT 40L / DMR 900 |
| Working Diameter (mm) | 900 – 1000 mm |
| Engine Type | Honda GX 160 |
| Max. Output (HP) | 5.5 – 6.5 HP |
| Weight (Kg) | 70 – 90 kg |
| Dimension (mm) | 1200 × 1000 × 850 mm |
| Model | BT 900 - 2PF H24 |
| Type | Low Ride Power Trowel |
| Engine Type | Honda GX 690, 24HP |
| Blade Rotation Speed | 60 – 130 RPM |
| Float Pans | 2 Pans |
| Blades | 8 Pcs |
| Dimensions (mm) | 2000 × 1000 × 1150 mm |
| Weight Dry (kg) | 280 – 350 kg |
| Model | BT-60H |
| Working Diameter (mm) | 600 mm |
| Engine Type | Honda GX 160 |
| Max. Output (HP) | 5.5 – 6.5 HP |
| Weight (Kg) | 60 – 75 kg |
| Dimension (mm) | 1200 × 600 × 900 mm |
| Model | BT-90H |
| Working Diameter (mm) | 900 mm |
| Engine Type | Honda GX 160 |
| Max. Output (HP) | 8 – 10 HP |
| Weight (Kg) | 90 – 110 kg |
| Dimension (mm) | 1800 × 900 × 1000 mm |
| Model | BTFC/45/4, BTFC200/18/2 |
| Capacity | 45 kVA / 200 kVA |
| Input (Phase/Hz/V/A) | 3 Phase / 50 Hz / 380–415 V / 63–300 A |
| Output (Phase/Hz/V/A) | 3 Phase / 200 Hz / 42–48 V / 80–400 A |
| Weight | 120 – 250 kg |
| Units Driving | 2 Needles, 4 Needles |
| Model | HVU110, HVU220 |
| Voltage | 220 – 415 V |
| Power (Kw) | 1.1 kW / 2.2 kW |
| Motor Speed | 12,000 – 14,000 RPM |
| Weight | 12 – 18 kg / 18 – 25 kg |
| Model | HDV38/2, HDV38/4 |
| Dia | 38mm |
| Length | 2m, 4m |
| Weight | 18 – 25 kg / 25 – 35 kg |
| Frequency | 200 – 250 Hz |
| Amplitude | 0.8 – 1.2 mm |
| Model | LS-325 |
| Generator | 5 – 7.5 kVA Diesel Generator |
| Package | Box 1:2700*1050*1350mm Box2:2900*750*320 |
| Laser Generator | High Precision Rotary Laser |
| Laser Receiver | Digital Laser Receiver System |
| Control System | Automatic Hydraulic Control System |
| Driving System | Hydraulic Drive |
| Airframe Adjustment | Automatic Level Adjustment |
| Slope Working | 0 – 10% Adjustable |
| Wheel Tyre | Heavy Duty Pneumatic Tyres |
| Virating System | Hydraulic Vibration System |
| Centrifugal Force | 15 – 30 kN |
| Vibrating System | Hydraulic Vibration System |
| Scraper Blade | Adjustable Steel Blade |
| Scraper Adjustment | Hydraulic Adjustable |
| Working Length | 2500 – 3000 mm |
| Reverse Speed | 0 – 3 km/h |
| Min. Ground Clearance | 200 mm |
| Ground Flatness | ±2 mm |
| Max Working Radius | 300 m |
| Working | Continuous Laser Controlled |
| Dimension (L*W*H) | 3500 × 2500 × 2000 mm |
| Weight | 800 – 1200 kg |
| Model | LS-400 |
| Engine Model | Honda GX / Equivalent Diesel Option |
| Engine Type | Petrol / Diesel Engine |
| Engine Power (Kw) | 7.5 – 9 kW |
| Lubrication Oil (L) | 1.2 – 1.5 L |
| Fuel Tank Capacity (L) | 15 – 20 L |
| Type of Leveling | Laser Guided Automatic Leveling |
| Paving Width (mm) | 2500 – 3000 mm |
| Paving Way | Automatic / Hydraulic Controlled |
| Paving Thickness (mm) | 50 – 300 mm |
| Boom Motor | Hydraulic Servo Motor |
| Vibrating System Control | Electronic / Hydraulic Control |
| Exciting force (kg) | 1500 – 2500 kg |
| Vibrational Frequency (hz) | 50 – 70 Hz |
| Laser System Control Type | Automatic Digital Laser Control |
| Laser System Control Effect | High Precision Leveling (±2 mm) |
| Driving System | Hydraulic Drive System |
| Wheel | Heavy-duty tyre |
| Walking Speed (km/h) | 0 – 4 km/h |
| Forword/backward | Yes |
| Turing | Hydraulic Steering |
| Dimension (mm) | 3200 × 2600 × 1800 mm |
| Weight | 900 – 1200 kg |
| Model Name | Concrete Paver XP-900 |
| Paving Width | 3.5 to 9 Meters |
| Engine Power | 110 HP Diesel Engine |
| Paving Speed | 0–5 M/min |
| Working Efficiency | 400 m²/hour |
| Vibration System | High-Frequency Vibration Motor |
| Leveling Accuracy | ±2 mm |
| Control Panel | Digital Smart Control System |
| Fuel Tank Capacity | 80 Litres |
| Weight | 2600 Kg |
| Model Name | BT Edger Trowel |
| Trowel Diameter | 600 mm |
| Engine Type | Honda GX160 / Equivalent |
| Power | 5.5 – 6.5 HP |
| Trowel Speed | 60 – 130 RPM |
| Blade Size | 150 × 350 mm |
| Weight | 60 – 75 kg |
| Operating Handle | Foldable with Adjustable Height |
| Application | Edge Finishing of Concrete Floors |
| Country of Origin | India |
| Model | BT Floater 100 |
| Engine Type | Petrol Honda GX160 |
| Power | 5.5 – 6.5 HP |
| Working Width | 1000 mm |
| Blade Size | 350 mm x 150 mm |
| Blade Quantity | 4 |
| Fuel Tank Capacity | 3.6 – 5.0 L |
| Weight | 70 – 90 kg |
| Speed | 60–130 RPM |
| Application | Concrete Surface Floating & Finishing |
| Model | GX65 Grinding Machine |
| Grinding Wheel Size | 250-300 mm |
| Power Supply | 3 Phase, 415V |
| Motor Capacity | 4 – 5.5 kW |
| Table Size | 600 × 300 mm |
| Surface Finish | High Precision Grinding |
| Max Workload | 200–300 kg |
| Cooling System | Water Cooling System |
| Material Suitability | Concrete, Steel & Industrial Surfaces |
| Brand | Topall Impex |
| Model | IVC-F33L |
| Type | Industrial Vacuum Cleaner |
| Power | 1200 – 1500 W |
| Voltage | 220 – 240 V |
| Tank Capacity | 33 L |
| Material | Stainless Steel |
| Filter Type | HEPA / Cartridge Filter |
| Noise Level | ≤ 70 dB |
| Mobility | Heavy Duty Wheels for Easy Movement |
| Brand | Topall Impex |
| Model | Sino S300 |
| Type | Surface Grinding Machine |
| Grinding Area | 300 mm |
| Motor Power | 3 – 4 kW |
| Table Load Capacity | 150 – 200 kg |
| Voltage | 220 – 415 V |
| Wheel Speed | 300 – 600 RPM |
| Cooling System | Air Cooling System |
| Operation | Semi-Automatic |
| Brand | Topall Impex |
| Model | HTG-820C |
| Type | Autopilot Planetary Grinder |
| Working Width | 820 mm |
| Grinding Disc | 3 × 270 mm Discs |
| Voltage | 380 – 415 V |
| Motor Power | 15 – 18 kW |
| Rotation Speed | 300 – 1800 RPM |
| Weight | 480 – 550 kg |
| Water Tank Capacity | 30 – 40 L |
| Application | Concrete Floor Grinding & Polishing |
| Model Name | IVC-45L |
| Working Width | 820 mm |
| Grinding Disc | 4 Discs / 12 Heads |
| Motor Power | 15 HP (11 kW) |
| Voltage | 380V-440V 3 Phase |
| Speed Range | 300–1800 RPM |
| Water Tank Capacity | 20 Litres |
| Net Weight | 580 kg |
| Transmission | Gear Drive + Belt Drive |
| Application | Concrete Floor Grinding & Polishing |
| Model | 995 LE |
| Grinding Width | 995 mm |
| Power Output | 15 – 18 kW |
| Voltage | 380 – 415 V |
| Grinding Disc Speed | 300 – 1800 RPM |
| Weight | 600 Kg |
| Grinding Pressure | Adjustable |
| Dust Collection Port | Dual Dust Extraction Port |
| Operation Mode | Manual & Auto |
| Application Area | Industrial Floor Grinding & Polishing |
| Model | GX688-4A |
| Power Output | 15 – 22 kW |
| Voltage | 380 – 415 V |
| Working Width | 680 mm |
| Grinding Heads | 4 Heads Planetary System |
| Speed | 300–1800 RPM |
| Water Tank Capacity | 30 – 40 L |
| Machine Weight | 450 – 600 kg |
| Dust Extraction Port | Dual Port Dust Collection System |
| Application Area | Concrete Floor Grinding & Polishing |
| Model | GT250 |
| Motor Power | 7.5 – 11 kW |
| Voltage | 380 – 415 V |
| Grinding Width | 250 mm |
| Disc Speed | 1800 – 3600 RPM |
| Weight | 120 – 150 kg |
| Dust Port | Yes |
| Application Area | Concrete Surface Scarifying & Roughening |
| Frame Material | Heavy-duty Mild Steel |
| Operation | Walk Behind / Manual Control |
| Model | GT630 |
| Grinding Width | 630 mm |
| Motor Power | 4 – 5.5 kW |
| Voltage | 220 – 415 V |
| Speed Range | 300–600 RPM |
| Working Pressure | Adjustable |
| Tool Holder | Magnetic / Quick Change Holder System |
| Weight | 180 – 220 kg |
| Application | Concrete Floor Grinding & Surface Preparation |
| Dust Port | Yes (vacuum compatible) |
| Model | GT330 |
| Motor Power | 3 – 4 kW |
| Voltage | 220 – 415 V |
| Grinding Width | 330 mm |
| Disc Speed | 300–1800 RPM |
| Number of Discs | 3 |
| Weight | 120-150 kg |
| Water Tank Capacity | 10-15L |
| Application | Concrete Floor Grinding & Polishing |
| Usage | Small to Medium Area Floor Preparation |
| Model | HTG-460 |
| Grinding Width | 460 mm |
| Motor Power | 4 – 5.5 kW |
| Voltage | 220V / 415V |
| Phase | Single / Three Phase |
| Rotation Speed | 300–1800 RPM |
| Tool Holder Type | Magnetic Plate |
| Water Tank Capacity | 15-20 Liters |
| Machine Weight | 150-180 kg |
| Application | Concrete Floor Grinding & Polishing |
| Model | 580-2 Grinding Machine |
| Power | 5.5 – 7.5 kW |
| Voltage | 220 – 415 V |
| Working Width | 580 mm |
| Grinding Heads | 2 Heads System |
| Weight | 200 – 250 kg |
| Rotation Speed | 300–1500 rpm |
| Water Tank | 30 Liters |
| Application Area | Concrete, Epoxy Removal |
| Usage Type | Industrial / Commercial Floors |
Screed Vibrator is a powerful but highly necessary instrument installed in the construction industry to provide smooth, even and strong concrete surfaces. It goes a long way in eliminating air pockets and excess volumes of water in new poured concrete thereby creating a dense and compact surface.
What is Screed Vibrator?
Screed Vibrator is a tool that operates through high frequency of vibrations, which smoothens down a concrete surface. The vibrations of the vibrator used shakes the concrete out which releases air bubbles and the extra water leaving a dense and sturdy finish.
Why Screed Vibrator?
- The Flat Surface: It makes it smooth and even.
- Strength: The concrete gets better and longer-lasting because the pockets of air have been eliminated.
- Longer Life: Compressed or compact concrete is less crackable and damages.
- Accelerated Construction: It accelerates the set up of concrete thus conserving time in the construction.
Our Screed Vibrators main characteristics
- High frequency of vibration: This ensures effective compaction, and easy finish.
- Mobile and Lightweight: It is not heavy and can easily be carried out in the field.
- Long-lasting construction: Constructed using quality materials to handle the harsh conditions in constructions.
- Simple Operation: Simple controls that could be used by the professionals and non professionals.
Which are the applications of a Screed Vibrator?
- Screed Vibrators are normally applied in:
- Slabs and floors
- Sidewalks and pavements
- Flyovers and bridges
The usage of the screed vibrator.
- Pour the concrete in the place to be smoothened out.
- Get the screed (a flat board) and roughly level.
- Start the screed vibrator and lightly screed.
- Enough time has to be given so that the vibrations level out the concrete and eliminate trapped air.
- After compacting the concrete, do whatever to the surface as is required.
